Molecular Mousetraps Capture More Nuclear Waste

December 12, 2017

You are here

Molecular Mousetraps Capture More Nuclear Waste

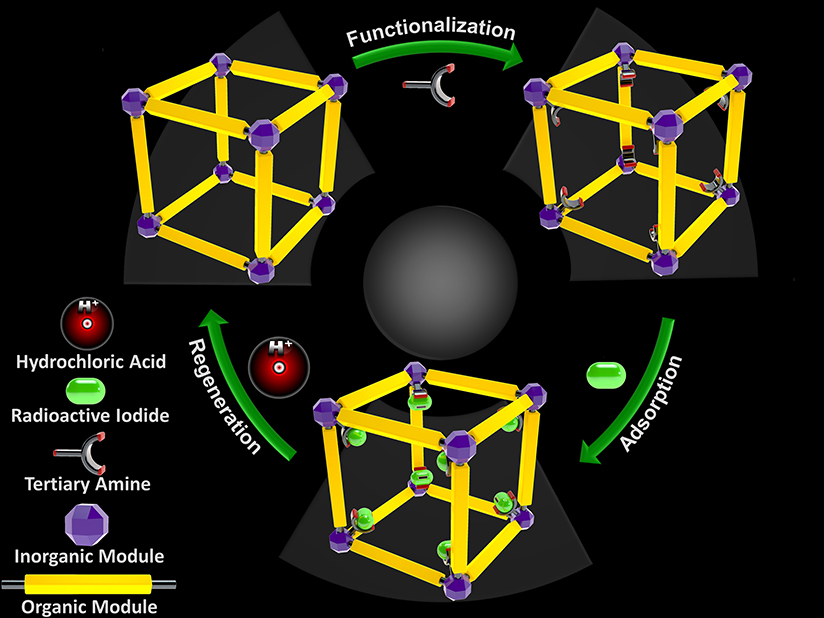

Chemically modified metal-organic frameworks (MOF) are over three times more effective at capturing radioactive iodine compounds than current industrial methods. The schematic shows the design and function of this recyclable MOF trap. First, a porous and robust MOF (yellow rods and purple balls) is modified by attaching a functional chemical "hook" (y-shaped gray molecule) inside its porous structure. The modified MOF has a high capacity for radioactive organic iodides (green) because the iodine binds strongly with the chemical "hook." The original MOF starting material can be recovered by acid (red) washing and reused multiple times, unlike other adsorbents.

The Science

At nuclear power plants and legacy waste sites, a particularly difficult-to-capture hazard is radioactive organic iodides. These compounds are made of hydrocarbons and iodine. In this work, scientists modified cage-like molecules called metal-organic frameworks (MOF). They added small "hooks" inside the cages. The modified MOFs were more than three times more effective at capturing radioactive organic iodides than the leading materials used by the U.S. nuclear fuel industry. Also, these traps were recyclable, unlike other adsorbents.

The Impact

The modified MOF has a high capture capacity, stability, recyclability, and low cost. It holds promise for effective capture of a difficult byproduct from nuclear reactors. Further, this study revealed that through chemical modification, MOFs could be tuned to capture specific molecules. Molecular tuning of MOFs has potential, broad impact in the chemical industry.

Summary

Since the 1980s, research has focused on containment of radioactive iodine, associated with nuclear energy and legacy environmental sites, because it is long-lived and can be incorporated into the human body, where it is linked with cancer. Radioactive organic iodide is particularly difficult to capture and sequester and thus tends to more easily leak into the environment. Effective capture of radioactive organic iodides (such as methyl iodide) remains a significant challenge due to the drawbacks of currently used adsorbents. These drawbacks include low uptake capacity, high cost, and non-recyclability. This work demonstrates a general approach to address this challenge by creating molecular traps through chemical modification of metal-organic framework (MOF) materials. Binding sites (chemical "hooks") are added to this highly porous, high surface area material. The binding sites have reactive nitrogen that can bind to the organic iodides. The trap exhibited a high methyl iodide capacity—over three times higher than the currently used industrial adsorbent under identical conditions. Also, these new MOFs advantageously serve as good adsorbents at lower temperatures. Furthermore, the MOF adsorbent can be recycled multiple times without loss of capacity, unlike other known industrial adsorbents. The team investigated the capture mechanism by experimental and theoretical methods. Their work verified that binding is occurring at the "hook" sites in the MOF. Due to its chemical and thermal stability, high capture efficiency, and low cost, the new MOF adsorbent demonstrates promise for industrial radioactive organic iodine capture from nuclear energy or treatment of legacy environmental clean-up sites.

Contact

Jing Li
Rutgers University
jingli@rutgers.edu

Funding

This work was supported by the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences.

Publications

B. Li, X. Dong, H. Wang, D. Ma, K. Tan, S. Jensen, B.J. Deibert, J. Butler, J. Cure, Z. Shi, T. Thonhauser, Y.J. Chabal, Y. Han, and J. Li, "Capture of organic iodides from nuclear waste by metal-organic framework-based molecular trapsExternal link." Nature Communications 8, 485 (2017). [DOI: 10.1038/s41467-017-00526-3]
