Changing the Surroundings Improves Catalysis

May 30, 2018

You are here

Changing the Surroundings Improves Catalysis

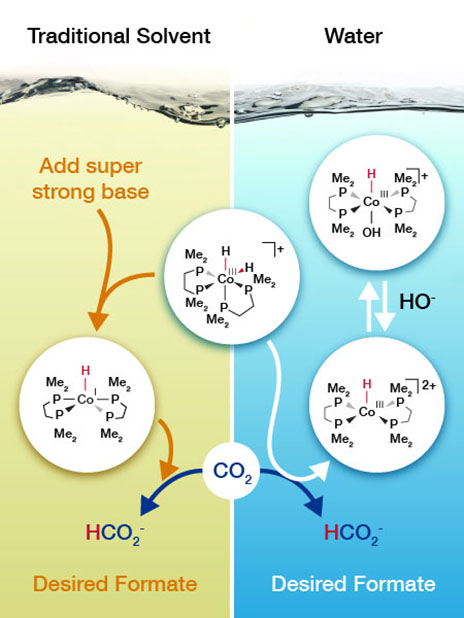

Catalysis researchers determined that the cobalt-based catalyst (center) takes a different path to adding hydrogen (H) to carbon dioxide (CO2) depending on whether it is in a traditional solvent or water.

The Science

Working under good conditions makes it easy to get a job done. But what if you could turn good to great? That's what scientists did for a popular catalyst that drives the conversion of carbon dioxide into a chemical feedstock known as formate. A cobalt-based catalyst drives the reaction in a solvent with a super strong base that is expensive. With some back-of-the-envelope calculations, scientists predicted that the cobalt catalyst could take a different reaction path to work in water with inexpensive sodium bicarbonate, commonly known as baking soda. The result? The catalyst is the best performing nonprecious metal catalyst for converting carbon dioxide in water.

The Impact

The team's work shows that the reaction environment, including the catalyst, solvent, and base, strongly influences the reaction. In this case, the surroundings determine how the reaction will proceed. Understanding the influence of the environment is crucial to designing the best catalysts. And the best catalysts are needed to transform carbon dioxide into a chemical that can serve as a building block for manufacturing hydrocarbon fuels and chemicals.

Summary

What if carbon dioxide could be used as a feedstock for valuable chemicals? The molecule would be turned into a hydrocarbon building block. How? By first adding hydrogen to create formate (HCOO–). A big challenge is finding a catalyst system that can drive the reaction without relying on expensive chemicals. A research team at Pacific Northwest National Laboratory devised a cobalt-based catalyst system that works in water. The catalyst is the best when it comes to driving the reaction in water without relying on precious metals or expensive bases.

The team predicted how the catalyst would react with carbon dioxide based on the expected impact of the solvent on hydride (H–) transfer, with the goal of working in water. The mechanism was different from those occurring in the traditional solvent, tetrahydrofuran. The resulting mechanism relies on inexpensive sodium bicarbonate instead of a strong and expensive base. Guided by the predictions, the team tested the catalyst in water with carbon dioxide. They characterized the catalyst's performance by high-pressure nuclear magnetic resonance spectroscopy using a customized cell developed and built at Pacific Northwest National Laboratory. The team's analysis demonstrated that the catalyst had worked just as predicted.

Contact

Eric Wiedner
Pacific Northwest National Laboratory
eric.wiedner@pnnl.gov

Funding

Department of Energy, Office of Science, Basic Energy Sciences, Division of Chemical Sciences, Geosciences, and Biosciences

Publications

S.A. Burgess, A.M. Appel, J.C. Linehan, and E.S. Wiedner, "Changing the mechanism for CO2 hydrogenation using solvent-dependent thermodynamicsExternal link." Angewandte Chemie International Edition 56,15002 (2017). [DOI: 10.1002/anie.201709319]

Related Links

Pacific Northwest National Laboratory highlight: Converting Carbon Dioxide in WaterExternal link
