How to Get Nuanced Details at the Top of the World

December 12, 2018

You are here

How to Get Nuanced Details at the Top of the World

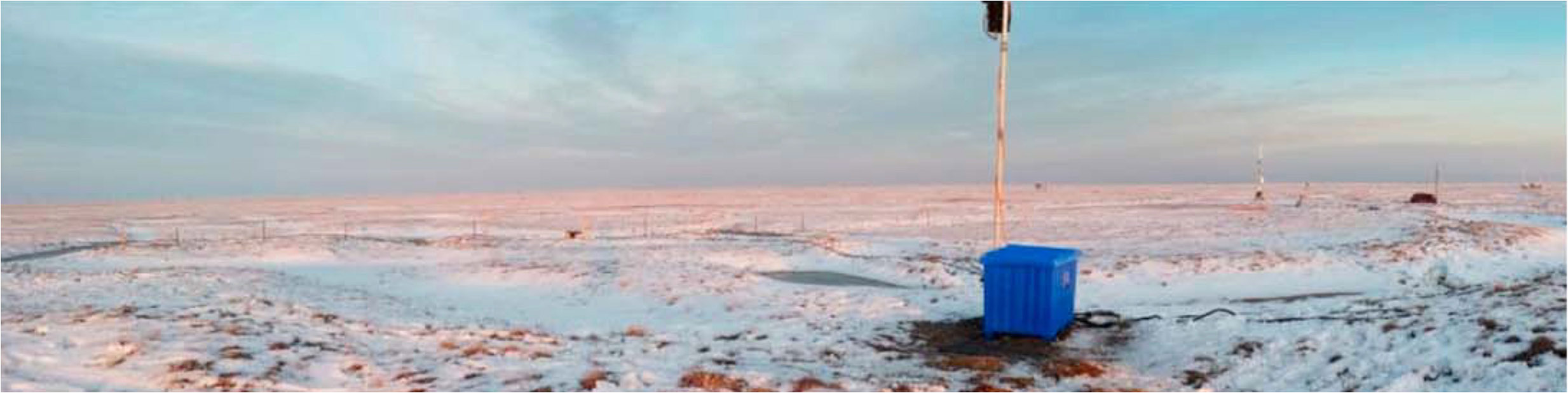

At the study site near Barrow, Alaska, monitoring transect and pole-mounted cameras are part of a new system that gathers data above and within the permafrost.

The Science

At the top of the world, once permanently frozen soil holds vast pools of carbon. Microbes could free that carbon under the right conditions. To predict how the Arctic will respond to seasonal freeze-thaw-growing conditions, scientists need data. They built a system that gathers detailed data. It obtained data for a year, took measurements deep underground, and monitored a wide area on the surface. The data revealed insights about tundra system behavior that might help accelerate long-term thaws resulting in carbon releases in coastal permafrost regions.

The Impact

The new system was the first to provide data on what's happening both above and below the ground. The first demonstration in an Arctic ecosystem illustrates its potential to remotely "see" interactions among permafrost, soil, and vegetation ecosystems. It offers a high resolution over a field dozens of yards long.

Summary

Researchers designed a novel strategy that exploits measurements obtained four ways: 1) electrical resistivity tomography to monitor soil properties, 2) pole-mounted optical cameras to monitor vegetation changes, 3) point probes to measure soil temperature, and 4) periodic measurements of thaw layer thickness, snow thickness, and soil dielectric permittivity. The data collected offered several insights. For example, it indicates a significant correlation between the temperature of the soil and the amount of water available to vegetation. The amount of water peaks during the growing season, highlighting the interactions between processes above and within the permafrost. Scientists confirmed these and other correlations at larger spatial scale using an unmanned aerial system platform.

Contact

Program Manager
Daniel Stover
Department of Energy, Office of Science, Biological and Environmental Research, SC-23.1
Daniel.Stover@science.doe.gov; (301) 903-0289

Principal Investigators
Stan D. Wullschleger
Oak Ridge National Laboratory
wullschlegsd@ornl.gov

Susan Hubbard
Lawrence Berkeley National Laboratory
sshubbard@lbl.gov

Funding

The Next-Generation Ecosystem Experiments-Arctic (NGEE-Arctic) project is supported by the Office of Biological and Environmental Research in the Department of Energy's Office of Science. This NGEE-Arctic research is supported through a contract to Lawrence Berkeley National Laboratory.

Publications

B. Dafflon, R. Oktem, J. Peterson, C. Ulrich, A.P. Tran, V. Romanovsky, and S.S. Hubbard, "Coincident aboveground and belowground autonomous monitoring to quantify covariability in permafrost, soil, and vegetation properties in Arctic tundra." Journal of Geophysical Research: Biogeosciences 122(6), 1321 (2017). [DOI: 10.1002/2016JG003724]
