Winter cold snaps often bring tragic stories of Americans killed by carbon monoxide, a colorless, odorless gas present in the emissions of gas-powered generators and vehicles. Several thousand more people are treated for carbon monoxide poisoning each year. While we currently rely on carbon monoxide detectors, new research points the way to a new approach: direct elimination of the gas. Collaborative research teams recently succeeded in creating tiny, uniquely structured wires that remove the gas from an enclosed area with a 100 percent efficiency at room temperature.
This work could lead to a highly efficient and cost-effective method to remove carbon monoxide. More broadly, the scientists showed how to maximize the activity of the tiny wires made from platinum and iron using an encased structure. This result provides insight towards the development of advanced catalysts, which could impact an incredibly large number of applications, such as fuel cell reaction systems.

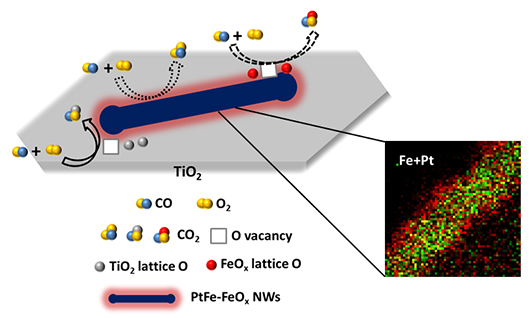

Carbon monoxide (CO) is a colorless and odorless gas that is potentially fatal at elevated concentrations due to the prevention of oxygen flow to organs and tissues. Though CO concentrations in the atmosphere have remained below the national safety standard for several decades, this gas still poses a threat to humans when elevated concentrations build up in enclosed areas. Though we currently rely on detectors to alert us of dangerous CO levels, the technology may soon exist to remove CO from indoor air instead. Collaborators from Oak Ridge National Laboratory, the University of Tennessee, Zhejiang University of Technology, and the Center for Functional Nanomaterials have teamed up to develop uniquely structured nanowires (NWs) that remove CO with a 100 percent conversion efficiency at room temperature. These one-dimensional nanostructures consist of a PtFe-FeOx core-shell composition and are supported on titanium dioxide (TiO2). Although the structures of these NWs seem rather complex, they are surprisingly simple to create. The team began by assembling PtFe NWs onto the TiO2 support. Then, they simply heated the NWs in air to cause Fe to diffuse to the surface of the NWs, thus creating the PtFe-FeOx core-shell structure. This structure serves to maximize the interfacial synergy of the system and to improve catalytic performance. Through the use of isotope mass spectrometry, the researchers identified three unique mechanisms for CO conversion. Two of the mechanisms involve the interface between the PtFe and FeOx phases of the NWs, with the remaining mechanism involving the interface between the NWs and the TiO2. All three of these reactions combine to give the NWs the extremely efficient 100 percent conversion of CO. Additionally, the presence of Fe and FeOx on Pt helps to prevent poisoning of the catalyst (deactivation through occupied binding sites). Upon application of slight heating (40 °C), NWs that had begun to decrease in activity due to poisoning were rejuvenated and resumed catalytic function at 100 percent conversion. The NWs remained stable and active through this process for many cycles, thus also illustrating their durability. This research can ideally be developed into a method for CO abatement, although the design of these unique NWs will also serve as inspiration for the design of advanced catalysts used in many different applications.
Chemical Sciences Division
Oak Ridge National Laboratory and the University of Tennessee
H.Z. was supported by Liane B. Russell Fellowship sponsored by the Laboratory Directed Research and Development Program at the Oak Ridge National Laboratory, managed by UT-Battelle, LLC, for the U.S. Department of Energy (DOE). Z.W. and S.D. were supported by the DOE, Office of Science, Chemical Sciences, Geosciences, and Biosciences Division. Part of the work, including the diffuse reflectance infrared Fourier-transform spectroscopy (DRIFTS) study, was conducted at the Center for Nanophase Materials Sciences, which is a DOE Office of Science user facility. Electron microscopy work used resources of the Center for Functional Nanomaterials, which is a DOE Office of Science facility, at Brookhaven National Laboratory under Contract No. DE-SC0012704. Part of the work (x-ray photoelectron spectroscopy, G.M.V.) was supported by the DOE Office of Science's Office of Basic Energy Sciences, Division of Materials Science and Engineering.
H. Zhu, Z. Wu, D. Su, G. Veith, H. Lu, P. Zhang, S.H. Chai, and S. Dai, "Constructing hierarchical interfaces: TiO2-supported PtFe-FeOx nanowires for room temperature CO oxidation." Journal of the American Chemical Society 137, 10156 (2015). [DOI: 10.1021/jacs.5b07011]
