In your electric car's battery, swapping an electrode with one made of silicon could let the battery store 10 times more energy. Why isn't silicon used? It falls apart. Scientists designed binders, small molecules and polymers, to modify the surface chemistry of the silicon. The binders improved resilience to cycling. A binder-based layer was formed during electrode preparation and initial cycling. The binder layer protected the surface.
The research is developing a better understanding of modified silicon electrodes for lithium-ion batteries. The result? The work could lead to batteries that give electric vehicles a greater driving range.

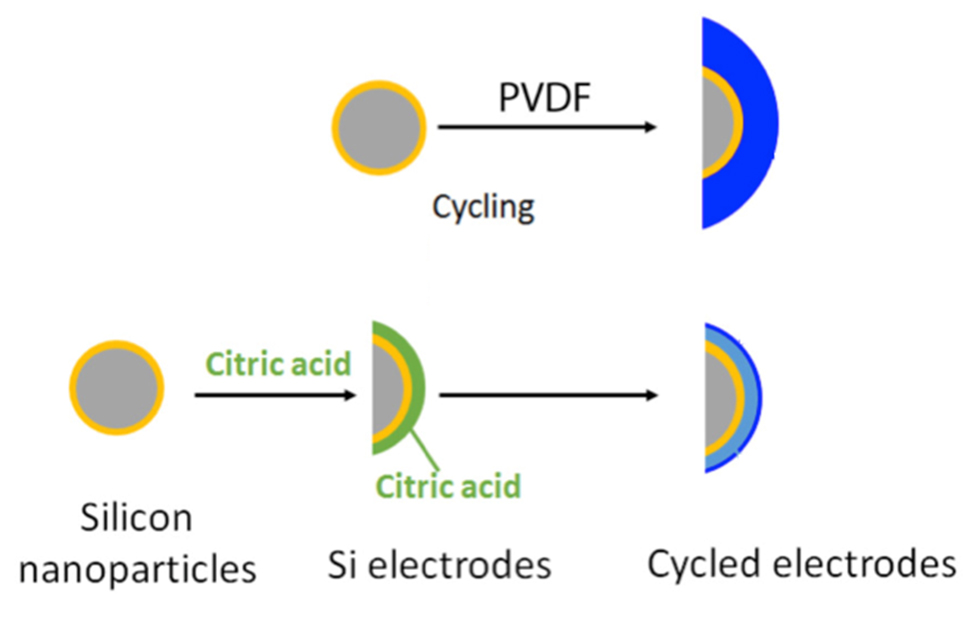

Lithium-ion batteries with silicon anodes have a theoretical capacity 10 times higher than the most commonly used anodes. However, silicon electrodes suffer degradation during charging and discharging. The electrode contracts and expands during cycling, pulverizing active particles and destroying electrical contact. The volume changes break down and destroy the solid electrolyte interphase. A team led by researchers from the University of Rhode Island investigated reactive carboxylic acid functionalized polymers and small molecules as surface-modifying agents and binders for silicon anodes. Small molecules have the added benefit of high orientational flexibility for better surface coverage. All the functional binders modified the surface of the silicon nanoparticles. During cycling, these binders electrochemically reacted and formed a protective layer, which suppressed the decomposition reactions with the electrolyte. The resulting solid electrolyte interphase was thinner than with the widely used binder poly(vinylidene) fluoride. Remarkably, after only one charge/discharge cycle, the small molecule, citric acid, reacted and formed a layer that protected the silicon from reacting with the electrolyte. Along with other binders, citric acid allowed for improved capacity retention and a more stable solid electrolyte interphase. The surface-modified silicon has improved cycle life, making these materials more attractive for next-generation lithium-ion batteries and long-range electric vehicles.
University of Rhode Island
U.S. Department of Energy (DOE), Office of Science, Basic Energy Sciences and DOE, Office of Energy Efficiency and Renewable Energy.
C.C. Nguyen, T. Yoon, D.M. Seo, P. Guduru, and B.L. Lucht, "Systematic investigation of binders for silicon anodes: Interactions of binder with silicon particles and electrolytes and effects of binders on SEI formation." ACS Applied Materials & Interfaces 8, 12211-12220 (2016). [DOI: 10.1021/acsami.6b03357]
C.C. Nguyen, D.M. Seo, K. Chandrasiri, and B.L Lucht, "Improved cycling performance of Si nanoparticle anode utilizing citric acid as a surface modifying agent." Langmuir 33, 9254-9261 (2016). [DOI: 10.1021/acs.langmuir.6b04310]
