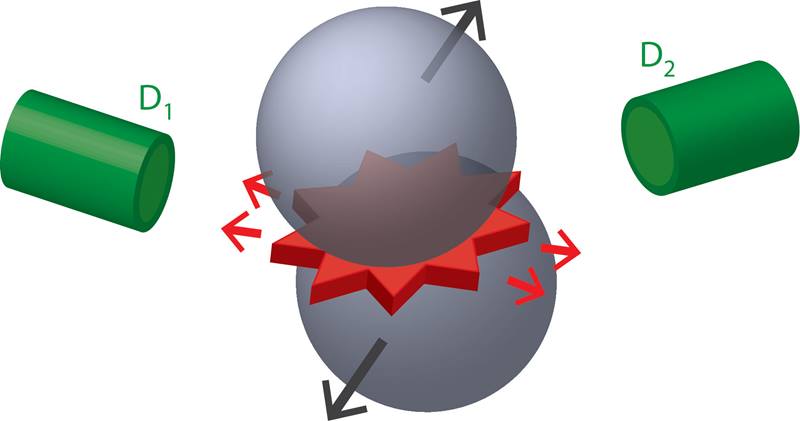

Optical deblurring, applied to measurements of nuclear collisions, can reveal what detectors (D1 and D2) would see if they were optimally oriented relative to the initial geometry of the collisions.
Optical deblurring, applied to measurements of nuclear collisions, can reveal what detectors (D1 and D2) would see if they were optimally oriented relative to the initial geometry of the collisions.
Image courtesy of Pawel Danielewicz, Michigan State University

The Science

When the nuclei of atoms are about to collide in an experiment, their centers never perfectly align along the direction of relative motion. This leads to collisions with complex three-dimensional geometry. Emissions from the dense hot region of nuclear matter form patterns during a collision. In relation to the geometry of the collisions, the patterns of emissions offer insights into characteristics of the compressed matter. The proposed deblurring strategy can reveal the emission patterns as if the initial nuclear centers were under a tight control in an experiment.

The Impact

The proposed strategy offers a new way to analyze and present data from the collisions of atomic nuclei. The strategy may make it easier for physicists to arrive at qualitative conclusions from collision data when the results from an experiment refer directly to the geometry of a collision. Until now, this sort of direct reference to collision geometry was only possible with theoretical simulations. This means simulations can focus on what researchers had believed was beyond the reach of experiment. This will help scientists to better understand compressed matter. The optical strategy may also help in nuclear experiments where the methodology makes it hard to obtain the desired information.

Summary

The deblurring strategy was inspired by a deblurring algorithm used in optics experiments to sharpen images. Outside of nuclear science, deblurring is used to decipher speed-camera photos. It was suggested by a research collaboration between the Facility for Rare Isotope Beams, a Department of Energy (DOE) Office of Science user facility at Michigan State University, and RIKEN Nishina Center in Japan. The strategy is an effective means of finding triple-differential distributions of products from heavy-ion collisions for a fixed direction of the reaction plane. The reaction plane is defined by the direction of relative velocity and the centers of nuclei entering a collision. At intermediate energies for the collisions, products emerge from a collision exhibiting correlations with the plane. Those correlations help to coarsely identify the orientation of that plane in an experiment. The proposed strategy can benefit the analysis of data from experiments focusing on properties of the compressed nuclear matter at facilities worldwide.

Contact

Pawel Danielewicz
Facility for Rare Isotope Beams and Department of Physics and Astronomy, Michigan State University
daniel@frib.msu.edu

Funding

This research was supported by the Department of Energy Office of Science, Office of Nuclear Physics.

Publications

Danielewicz, P. & Kurata-Nishimura, M., Deblurring for Nuclei: 3D Characteristics of Heavy-Ion CollisionsPhysical Review C 105, 034608 (2022). [DOI: 10.1103/PhysRevC.105.034608]

Related Links

Berkowitz, R., Bringing into Focus the Debris of Heavy-Ion CollisionsPhysics 15, s26 (2022). [DOI: 10.1103/Physics.15.s26]
