Hydrogen Production: Biomass Gasification

You are here

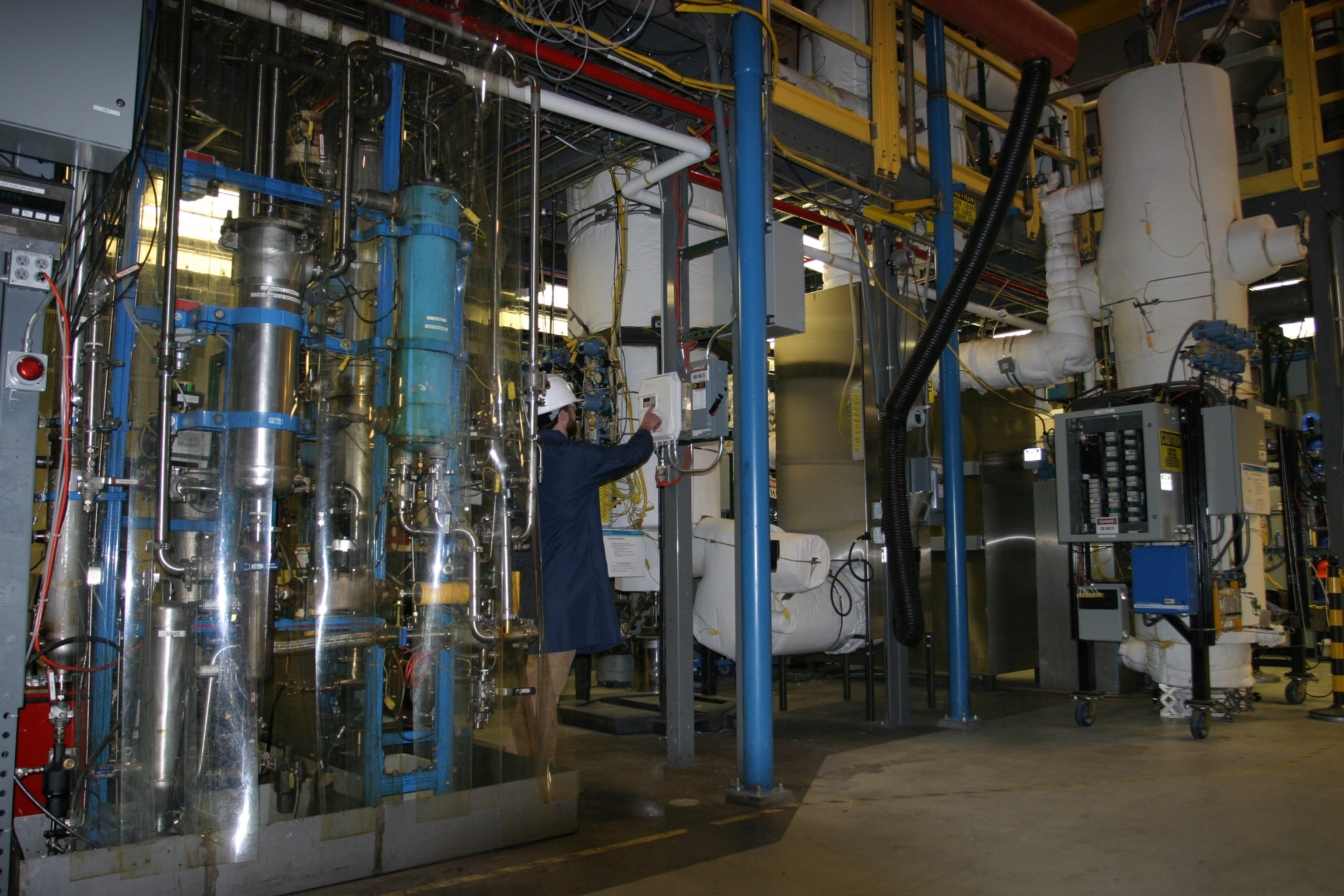

Photo of a man standing near a pilot-scale gasification system.
Biomass gasification is a mature technology pathway that uses a controlled process involving heat, steam, and oxygen to convert biomass to hydrogen and other products, without combustion. Because growing biomass removes carbon dioxide from the atmosphere, the net carbon emissions of this method can be low, especially if coupled with carbon capture, utilization, and storage in the long term. Gasification plants for biofuels are being built and operated, and can provide best practices and lessons learned for hydrogen production. The U.S. Department of Energy anticipates that biomass gasification could be deployed in the near-term timeframe.

What Is Biomass?

Biomass, a renewable organic resource, includes agriculture crop residues (such as corn stover or wheat straw), forest residues, special crops grown specifically for energy use (such as switchgrass or willow trees), organic municipal solid waste, and animal wastes. This renewable resource can be used to produce hydrogen, along with other byproducts, by gasification.

How Does Biomass Gasification Work?

Gasification is a process that converts organic or fossil-based carbonaceous materials at high temperatures (>700°C), without combustion, with a controlled amount of oxygen and/or steam into carbon monoxide, hydrogen, and carbon dioxide. The carbon monoxide then reacts with water to form carbon dioxide and more hydrogen via a water-gas shift reaction. Adsorbers or special membranes can separate the hydrogen from this gas stream.

Simplified example reaction
C6H12O6 + O2 + H2O → CO + CO2 + H2 + other species

Note: The above reaction uses glucose as a surrogate for cellulose. Actual biomass has highly variable composition and complexity with cellulose as one major component.

Water-gas shift reaction
CO + H2O → CO2 + H2 (+ small amount of heat)

Pyrolysis is the gasification of biomass in the absence of oxygen. In general, biomass does not gasify as easily as coal, and it produces other hydrocarbon compounds in the gas mixture exiting the gasifier; this is especially true when no oxygen is used. As a result, typically an extra step must be taken to reform these hydrocarbons with a catalyst to yield a clean syngas mixture of hydrogen, carbon monoxide, and carbon dioxide. Then, just as in the gasification process for hydrogen production, a shift reaction step (with steam) converts the carbon monoxide to carbon dioxide. The hydrogen produced is then separated and purified.

Why Is This Pathway Being Considered?

Biomass is an abundant domestic resource.
In the United States, there is more biomass available than is required for food and animal feed needs. A recent report projects that with anticipated improvements in agricultural practices and plant breeding, up to 1 billion dry tons of biomass could be available for energy use annually. For more information, see U.S. Billion-Ton Update: Biomass Supply for a Bioenergy and Bioproducts Industry.

Biomass "recycles" carbon dioxide.
Plants consume carbon dioxide from the atmosphere as part of their natural growth process as they make biomass, off-setting the carbon dioxide released from producing hydrogen through biomass gasification and resulting in low net greenhouse gas emissions.

Research Focuses on Overcoming Challenges

Key challenges to hydrogen production via biomass gasification involve reducing costs associated with capital equipment and biomass feedstocks.

Research to lower capital costs:

  • Replacing the cryogenic process currently used to separate oxygen from air when oxygen is used in the gasifier with new membrane technology.
  • Developing new membrane technologies to better separate and purify hydrogen from the gas stream produced (similar to coal gasification).
  • Intensifying the process (combining steps into fewer operations).

Research to lower biomass feedstock costs:

  • Improved agricultural practices and breeding efforts should result in low and stable feedstock costs.

As biomass gasification is a mature technology, feedstock costs and lessons learned from commercial demonstrations will determine its potential as a viable pathway for cost-competitive hydrogen production.
