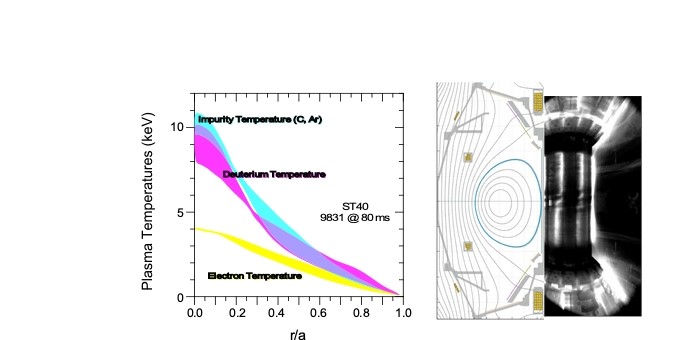

Results from TRANSP analysis of high temperature ST40 discharge (left) and equilibrium reconstruction and camera image of high temperature ST40 discharge (right).
Results from TRANSP analysis of high temperature ST40 discharge (left) and equilibrium reconstruction and camera image of high temperature ST40 discharge (right).
Image courtesy of Princeton Plasma Physics Laboratory, Princeton University (left) and Tokamak Energy Ltd. (right).

The Science

To produce commercial energy, future fusion power plants will need to achieve temperatures of 100 million degrees C. To do so requires careful control of the plasma. In this study, researchers refined operating conditions to achieve the necessary temperatures in a compact spherical tokamak device called ST40. This device is unique; it is much smaller and has a more spherical plasma than other fusion devices. To achieve these results, the researchers used an approach similar to past “supershots” that produced more than 10 million watts of fusion power in the TFTR tokamak in the 1990s.

The Impact

This effort demonstrated fusion-relevant ion temperatures in a compact, high magnetic field, spherical tokamak for the first time. This confirms that the spherical tokamak can achieve one of the conditions necessary for commercial fusion energy production. These results also show that similar fusion pilot plants may lead to more compact, and potentially more economical, fusion power sources than other configurations.


Princeton Plasma Physics Laboratory (PPPL), Oak Ridge National Laboratory (ORNL), and Tokamak Energy Ltd researchers worked within a first-of-the-kind Collaborative Research and Development Agreement (CRADA) joint framework to develop operational scenarios and analysis methods. Their experiments have now demonstrated the achievement of fusion-relevant high ion temperatures in a privately built experimental fusion facility. PPPL and ORNL researchers have actively participated in the ST40 device’s operation and data analysis to achieve these plasma temperatures required for commercial fusion energy.

In the research, ST40 plasmas operated at toroidal magnetic field values of just over 2 Telsa and were heated by 1.8 million watts of high energy neutral particles. While the ST40 plasma discharges lasted for only 150 milliseconds, the plasma showed ion temperatures of more than 100 million degrees Celsius. The researchers used the TRANSP transport code developed at PPPL to determine the ion temperature of the main species deuterium based on the ranges of impurity temperature profiles that were measured. These profiles reveal the impurity ion temperature range (shown in blue in the image above) well above 8.6 keV (100 million degrees Celsius), and the range of deuterium temperatures (shown in magenta) around the 8.6 keV level.


Stanley Kaye
Princeton Plasma Physics Laboratory, Princeton University


The PPPL and ORNL portion of the research was funded by a Department of Energy Office of Science Collaborative Research And Development Agreement with Tokamak Energy Ltd.


McNamara, S.A.M., et al., Achievement of ion temperatures in excess of 100 million degrees Kelvin in the compact high-field spherical tokamak ST40Nuclear Fusion 63, 054002 (2023). [DOI: 10.1088/1741-4326/acbec8]

Bell, M.G., et al., Overview of TFTR Results. Nuclear Fusion 35, 1429 (1995). [DOI 10.1088/0029-5515/35/12/I02]
