Marine and Hydrokinetic Technology Glossary

You are here

Learn about the basic technologies and key terms used to describe marine and hydrokinetic technologies.

Wave

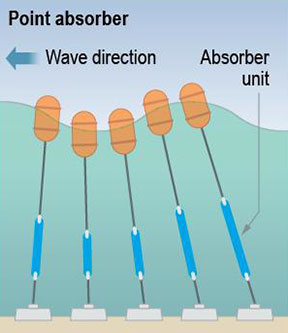

Image of the motion of a bottom-mounted point absorber responding to a passing wave to generate energy from the waves.

Point Absorber

Wave energy capture device, with principal dimension relatively small compared to the wavelength, and is able to capture energy from a wave front greater than the physical dimension of the device. There are floating and submerged models.

Submerged Pressure Differential

Wave energy capture device, which can be considered a fully submerged point absorber; a pressure differential is induced within the device as the wave passes driving a fluid pump to create mechanical energy.

Back to Top







Image of a partially submerged oscillating water column that generates energy from air forced through a turbine by the rising and falling motion of a wave.
Oscillating Water Column

Partially submerged structure that encloses a column of air above a column of water; a collector funnels waves into the structure below the waterline, causing the water column to rise and fall; this alternately pressurizes and depressurizes the air column, pushing or pulling it through a turbine. There are shore-based and floating models.

Back to Top




Image of a partially submerged wave overtopping reservoir that funnels waves into a reservoir and released through a turbine back to the sea to generate electricity.
Overtopping Device

Partially submerged structure; a collector funnels waves over the top of the structure into a reservoir; water runs back out to the sea from this reservoir through a turbine. There are shore-based and floating models.

Back to Top



Image of an attenuator that is parallel to the incoming direction of the wave and captures energy from both the up and down and side-to-side motion of the linked sections relative to each other in reaction to passing waves.
Attenuator

Wave energy capture device with principal axis oriented parallel to the direction of the incoming wave that converts the energy due to the relative motion of the parts of the device as the wave passes along it.

Back to Top





Oscillating Wave Surge Converter

Any of several devices that capture wave energy directly without a collector by using relative motion between a float/flap/membrane and a fixed reaction point; the float/flap/membrane oscillates along a given axis dependent on the device; mechanical energy is extracted from the relative motion of the body part relative to its fixed reference.

Back to Top

Current

Axial Flow Turbine

Axial Flow Turbine

Typically has two or three blades mounted on a horizontal shaft to form a rotor; the kinetic motion of the water current creates lift on the blades causing the rotor to turn driving a mechanical generator. These turbines must be oriented in the direction of flow. There are shrouded and open rotor models.

Back to Top




Cross Flow Turbine
Cross Flow Turbine

Typically has two or three blades mounted along a vertical shaft to form a rotor; the kinetic motion of the water current creates lift on the blades causing the rotor to turn driving a mechanical generator. These turbines can operate with flow from multiple directions without reorientation. There are shrouded and open rotor models.

Back to Top




Oscillating Hydrofoil
Reciprocating Device

Uses the flow of water to produce the lift or drag of an oscillating part transverse to the flow direction. This behavior can be induced by a vortex, the Magnus effect, or by flow flutter.

Oscillating Hydrofoil: (Example of a Reciprocating Device)

Similar to an airplane wing but in water; yaw control systems adjusts their angle relative to the water stream, creating lift and drag forces that cause device oscillation; mechanical energy from this oscillation feeds into a power conversion system.

Back to Top



Ocean Thermal Energy Conversion (OTEC)

Ocean Thermal Energy Conversion Closed-cycle

Closed-cycle

These systems use fluid with a low-boiling point, such as ammonia, to rotate a turbine to generate electricity. Warm surface seawater is pumped through a heat exchanger where the low-boiling-point fluid is vaporized. The expanding vapor turns the turbo-generator. Cold deep-seawater—pumped through a second heat exchanger—condenses the vapor back into a liquid, which is then recycled through the system.

Back to Top



Ocean Thermal Energy Conversion Open-cycle
Open-cycle

These systems use the tropical oceans' warm surface water to make electricity. When warm seawater is placed in a low-pressure container, it boils. The expanding steam drives a low-pressure turbine attached to an electrical generator. The steam, which has left its salt behind in the low-pressure container, is almost pure fresh water. It is condensed back into a liquid by exposure to cold temperatures from deep-ocean water.

Back to Top

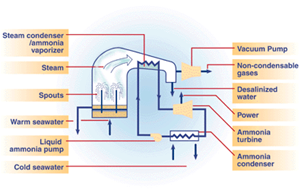

Ocean Thermal Energy Conversion Hybrid
Hybrid

These systems combine the features of both the closed-cycle and open-cycle systems. In a hybrid system, warm seawater enters a vacuum chamber where it is flash-evaporated into steam, similar to the open-cycle evaporation process. The steam vaporizes a low-boiling-point fluid (in a closed-cycle loop) that drives a turbine to produce electricity.

OTEC Schematics from NREL
