Grid Reliability, Resilience, & Integration (HydroWIRES)

Project Name: U.S. Engaging With International Partners to Promote Opportunities for Pumped Storage

Project Team: Pacific Northwest National Laboratory

Lead Recipient Location: Richland, Washington

Solid black line separating content.

Pacific Northwest National Laboratory partnered with the International Forum on Pumped Storage Hydropower to develop a series of reports on how policy and markets, sustainability, and capabilities, costs, and innovation can support or hinder the development of pumped storage hydropower (PSH). The team also provided key recommendations and findings based on their research. The series of reports includes:

The policy and market working group made seven key recommendations to help ensure PSH will be deployed at the scale needed to support an efficient and reliable energy transition. These recommendations include:

  • Policymakers should assess the long-term storage needs of their future power system now, so that the most efficient options, which may take longer to build, are not lost.
  • Comparisons between energy storage and flexible options must follow a consistent, technology-neutral approach that considers all impacts and benefits.
  • Providers of essential electricity grid, storage, and flexibility services should be remunerated for all services they provide.
  • Licensing and permitting arrangements must be timely and proportionate and take advantage of the range of internationally recognized sustainability tools.
  • Investors in long-lasting assets, such as PSH, must have long-term visibility of revenues with risk that is shared fairly to deliver the lowest overall cost to society in the long term.
  • Existing hydropower assets and prospective sites should be assessed and mapped for their potential to provide the most efficient long-duration storage.
  • Green recovery programs should include and support PSH, and green finance mechanisms should incentivize PSH.

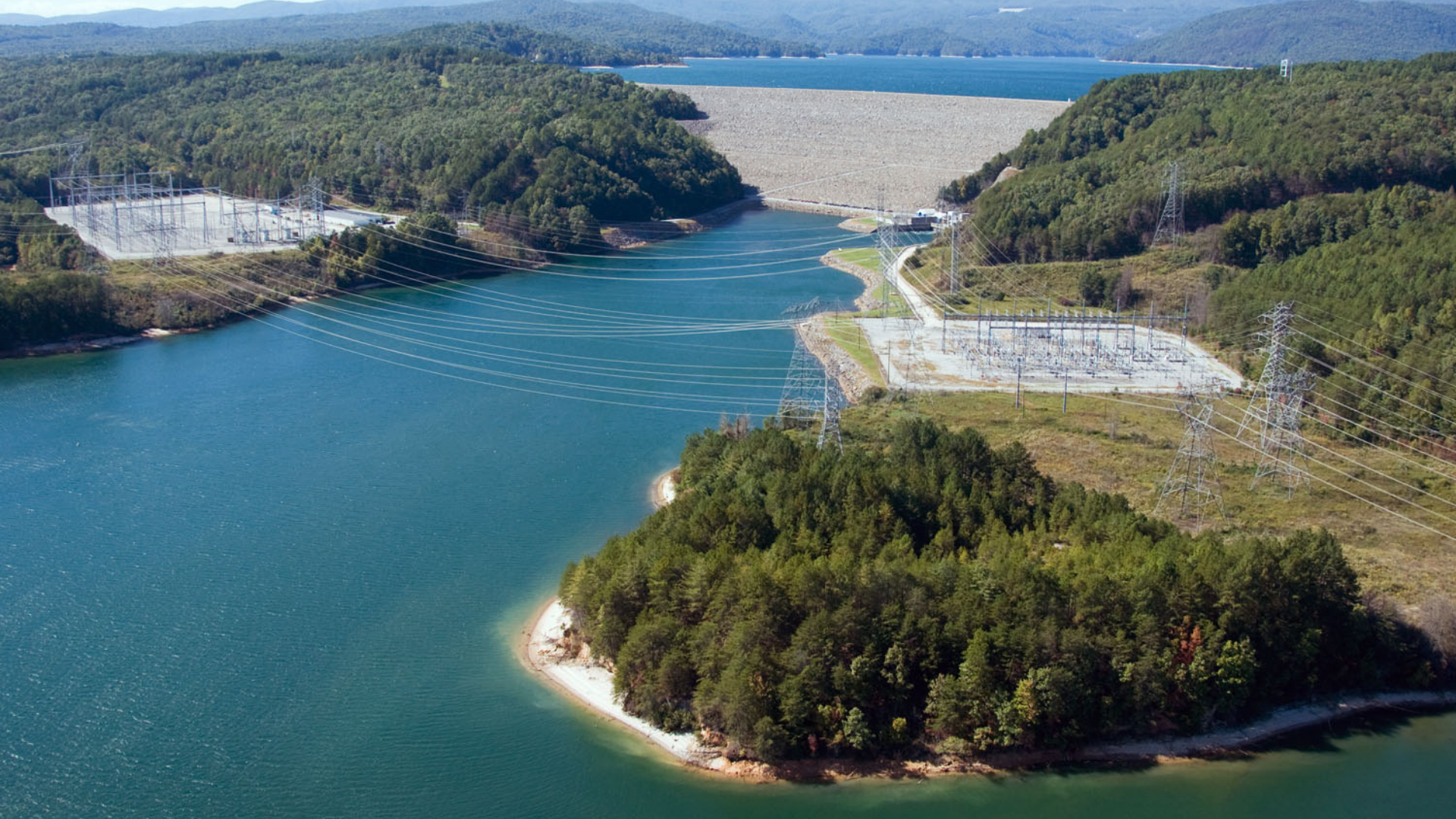

Aerial shot of a pumped storage hydropower plant.

Known as The Marvel in the Mountain, South Carolina's Bad Creek Hydroelectric Station started operating in 1991. The pumped storage hydropower plant can hold up to 1,065 megawatts of renewable energy. Photo courtesy of the National Hydropower Association

The sustainability working group developed five key findings to illustrate the wide range of tools and methods that can help ensure PSH is sustainable. These findings include:

  • PSH should be considered as a key enabler of the clean energy transition, alongside other energy storage technologies.
  • The development of PSH projects should rely on a multilevel approach, including an assessment of the storage, flexibility, and ancillary services that a given power system needs and an assessment of the options available to meet those needs. Once selected, the PSH project should be managed to avoid, minimize, and mitigate social and environmental impacts.
  • PSH projects are site-specific and sustainability cannot be defined by a simplistic classification. Existing sustainability tools for conventional hydropower projects are flexible and sophisticated to allow for these nuances as the application of life cycle analysis to PSH projects is still nascent and mainly in the research domain.
  • While potentially of value, specific attention must be given to the boundaries and functional units of the power system, such as the underlying energy mix. There is no evidence to suggest a material difference in greenhouse gas emissions from PSH reservoirs compared to conventional hydropower reservoirs, which fall between those of wind energy and solar power on average.
  • PSH projects, as with many hydropower projects, can generate one-time or permanent local benefits, which should be considered in their sustainability assessment.

The capabilities, costs, and innovation working group found that simplistic capital expenditure comparisons could be misleading as PSH has a much longer life than many other energy storage technologies. The group also highlighted three categories with emerging innovations:

  • Furthering PSH potential: Installing PSH at disused mines, underground caverns, non-powered dams, and conventional hydropower plants, as well as location-agnostic underground, off-river, and seawater PSH, represent vast untapped potential.
  • Retrofitting and upgrading PSH systems: The latest technological advancements, such as the use of variable-speed pump turbines and hydraulic short circuit, can enhance the services provided by existing PSH,
  • Developing hybrid systems: Coupling PSH with batteries, floating solar photovoltaic, heat storage, and desalination can provide additional services with reduced costs and environmental impacts.
