DYNAMIC MANUFACTURING ENERGY SANKEY TOOL (2010, UNITS: TRILLION BTU)

You are here

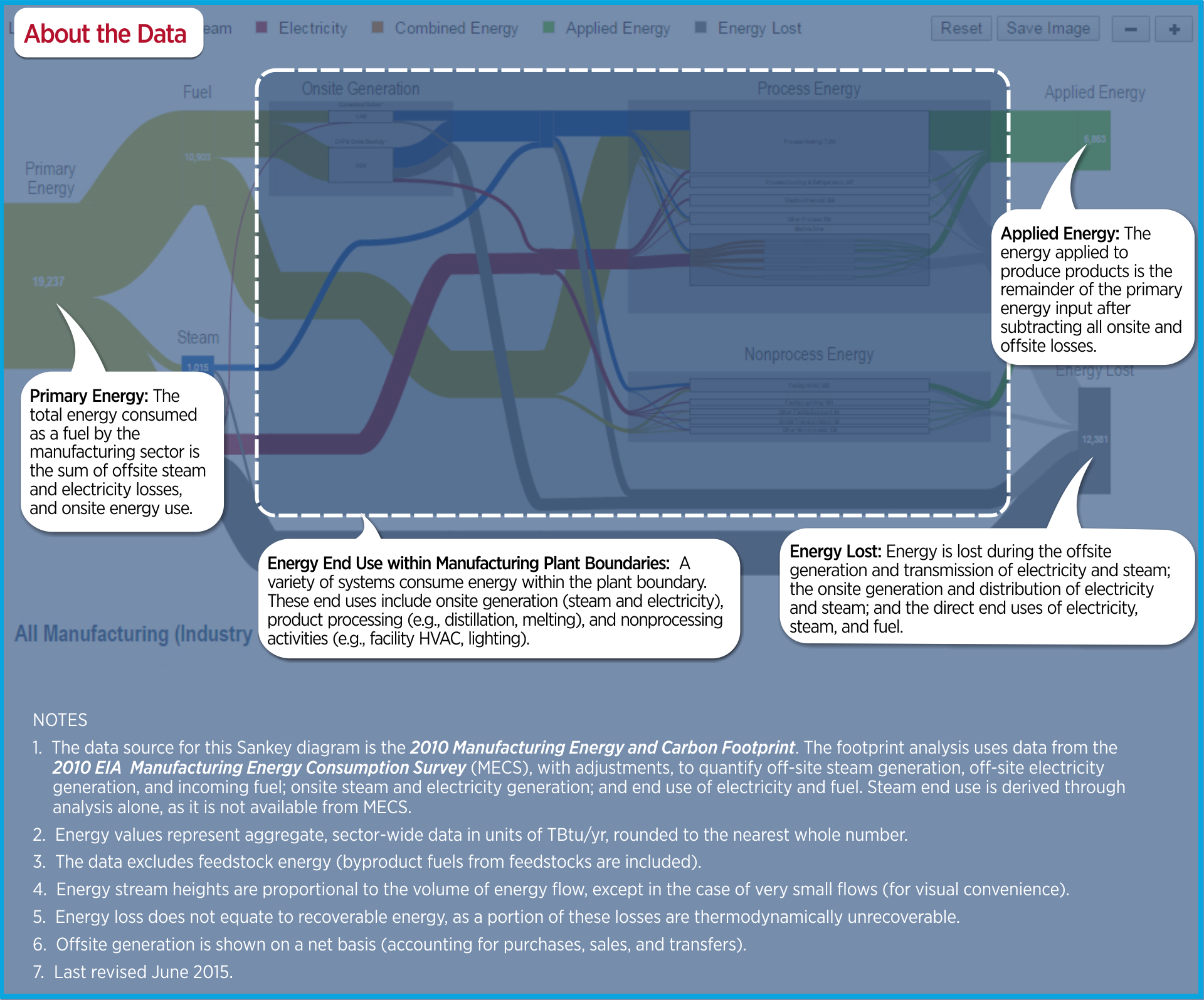

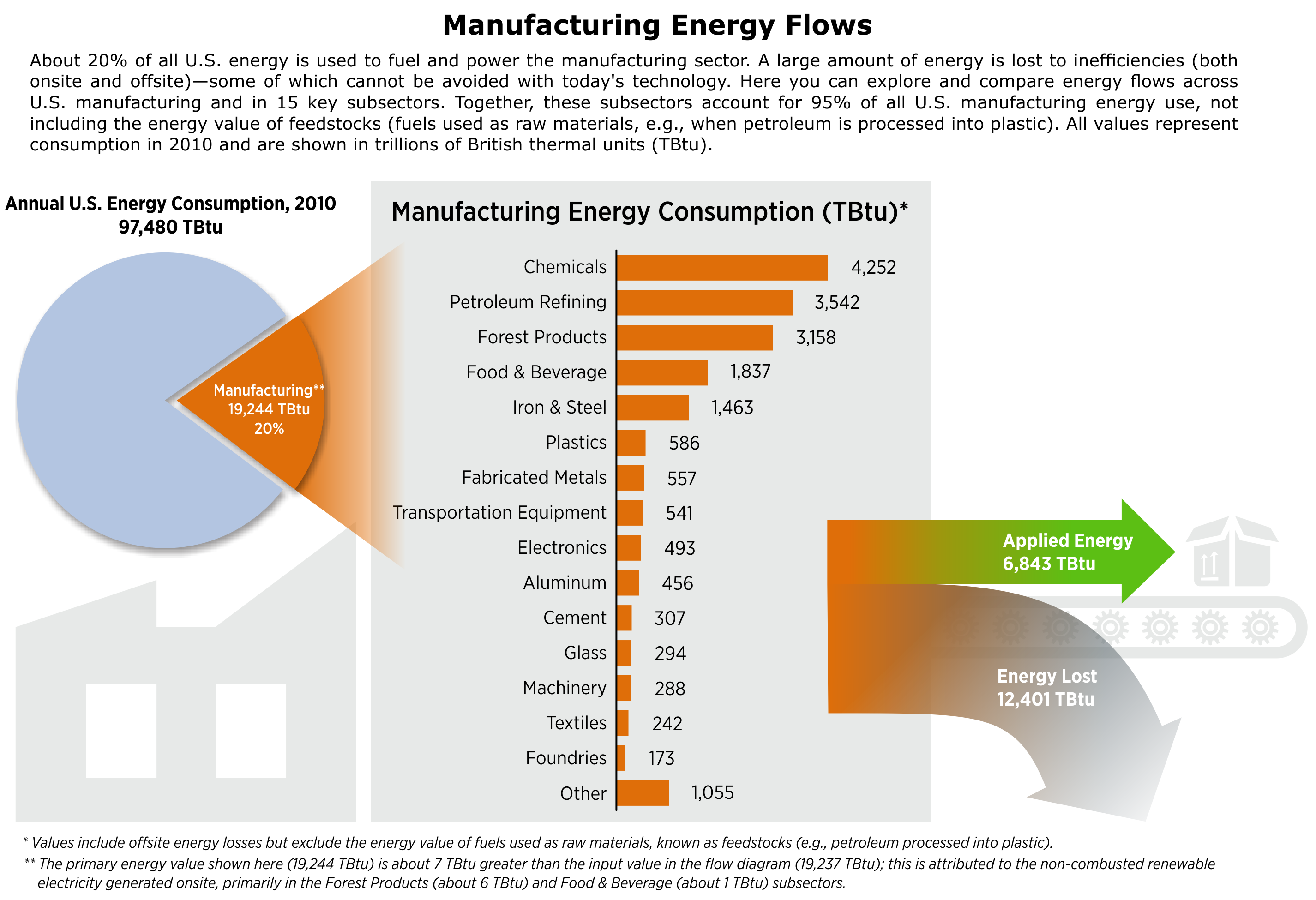

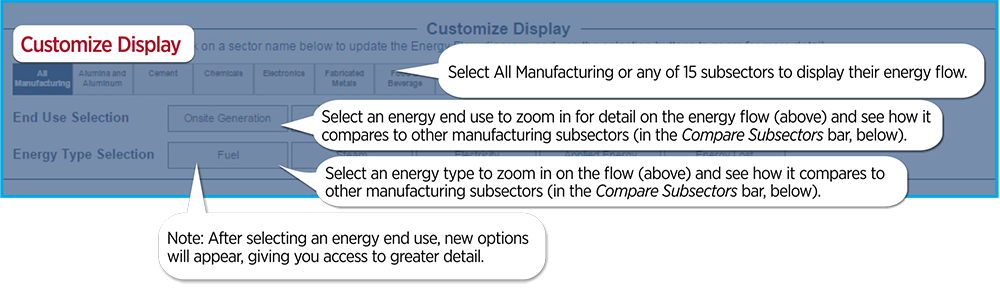

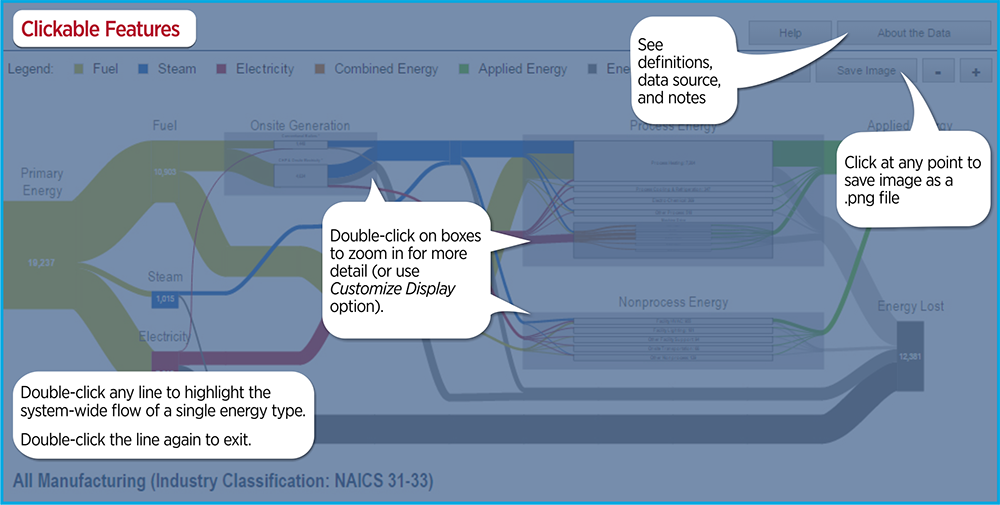

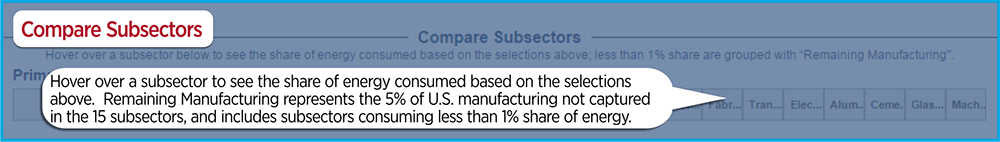

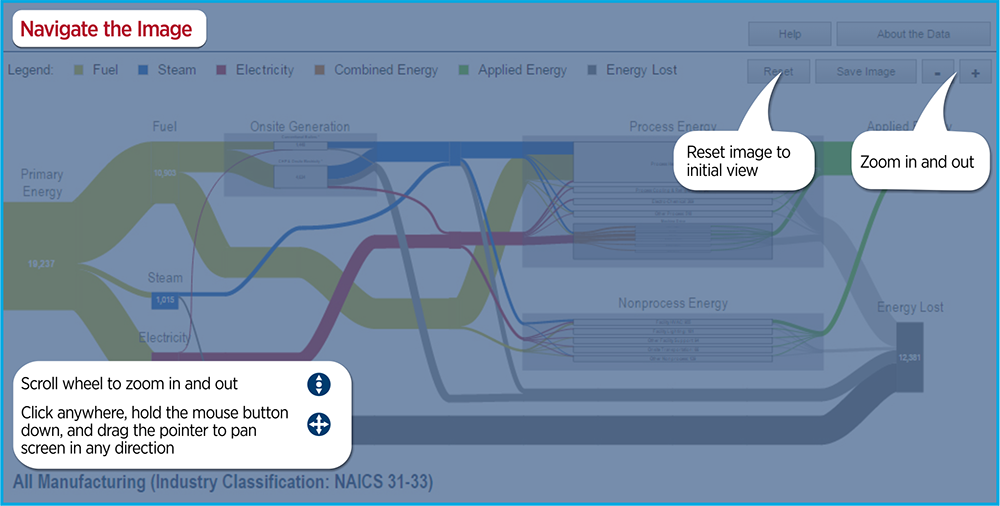

AMO’s interactive Dynamic Manufacturing Energy Sankey Tool displays the Manufacturing Energy Footprint data as dynamic Sankey diagrams. Line widths indicate the volume of energy that flows to major energy end uses in manufacturing and line colors indicate fuel, steam, electricity, and applied or lost energy. Users can pan, zoom, and customize the display to explore the flow of energy use at the macro scale or compare energy consumption across manufacturing subsectors. Selected images can be saved for export.
