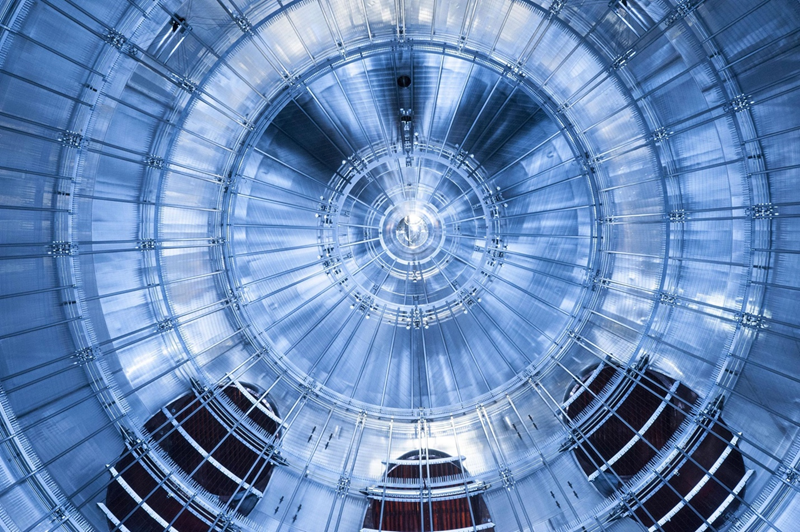

The interior of the main spectrometer of the KArlsruhe TRItium Neutrino (KATRIN) experiment. Beta-decay electrons with sufficient energy fly through this 10-meter diameter, 23-meter-long vacuum vessel and are detected by a system built by U.S. scientists.
The interior of the main spectrometer of the KArlsruhe TRItium Neutrino (KATRIN) experiment. Beta-decay electrons with sufficient energy fly through this 10-meter diameter, 23-meter-long vacuum vessel and are detected by a system built by U.S. scientists.
Image courtesy of Markus Breig, Karlsruhe Institute of Technology

The Science

Neutrinos are the most abundant particles that have mass in the universe, but that mass is so small that scientists have not been able to measure it. To obtain that measurement, an international scientific collaboration designed and constructed the KArlsruhe TRItium Neutrino (KATRIN) experiment in Germany. KATRIN uses tritium, an isotope of hydrogen, for neutrino mass experiments. Tritium decays to a helium nucleus, an electron, and an electron-type antineutrino. Scientists can determine the neutrino mass by measuring the kinetic energy of the electrons released as tritium decay. Recently, the KATRIN experiment released its latest results on the neutrino mass measurement. The experiment established the most stringent upper limit of the neutrino mass in a laboratory measurement.

The Impact

Scientists do not know the actual mass of neutrinos, but the value affects the universe’s evolution. This new upper limit of the neutrino mass from this direct measurement does not depend on any assumptions of models of the evolution of the universe. Future improvements in this measurement will constrain these models. This will allow scientists to better understand our universe. The result is also the first time a laboratory, model-independent measurement has the physics sensitivity that reached a key threshold neutrino-mass limit called the “sub-electronvolt.”

Summary

The KATRIN experiment recently released its latest result of the neutrino-mass measurement. The experiment established an upper limit of 0.8 eV/c2, or 1.4×10-33 grams. This is the most stringent laboratory limit of the neutrino mass from tritium beta-decay measurements. This limit highlights a remarkedly light neutrino mass, and future improvements with more data will allow scientists to better understand the evolution of our universe. This result is the first to reach a sensitivity below 1 eV/c2 (“sub-electronvolt”). The researchers’ analysis of the beta-electron energy spectrum for the signature of a neutrino mass used an advanced statistical method called Bayesian analysis, which required considerable computational resources provided by the high-performance computer Cori at the Department of Energy’s National Energy Research Scientific Computing Center (NERSC). The researchers reported the results of this analysis along with those obtained by other collaborators of the experiment, demonstrating consistent results.

In addition to analyzing the neutrino-mass data sets, U.S. scientists designed and built the silicon detector system, furnished the data acquisition system, checked the integrity of the acquired data, assayed construction materials to reduce radioactive backgrounds, and measured the energy states to which tritium molecules decay independently.

Contact

Alan Poon
Nuclear Science Division, Lawrence Berkeley National Laboratory
AWPoon@lbl.gov

Funding

This work was supported by the Department of Energy, the European Research Council, the Helmholtz Association, the German Federal Ministry of Education and Research, the Helmholtz Alliance for Astroparticle Physics, and the Helmholtz Young Investigator Group, the German Research Foundation, the Max Planck Society of Germany, the Czech Republic Ministry of Education, and the Russian Federation Ministry of Science and Higher Education.

Publications

Aker, M., et al. (KATRIN Collaboration), Direct neutrino-mass measurement with sub-electronvolt sensitivity, Nature Physics 18 2, 160-166 (2022). [DOI: 10.1038/s41567-021-01463-1]
