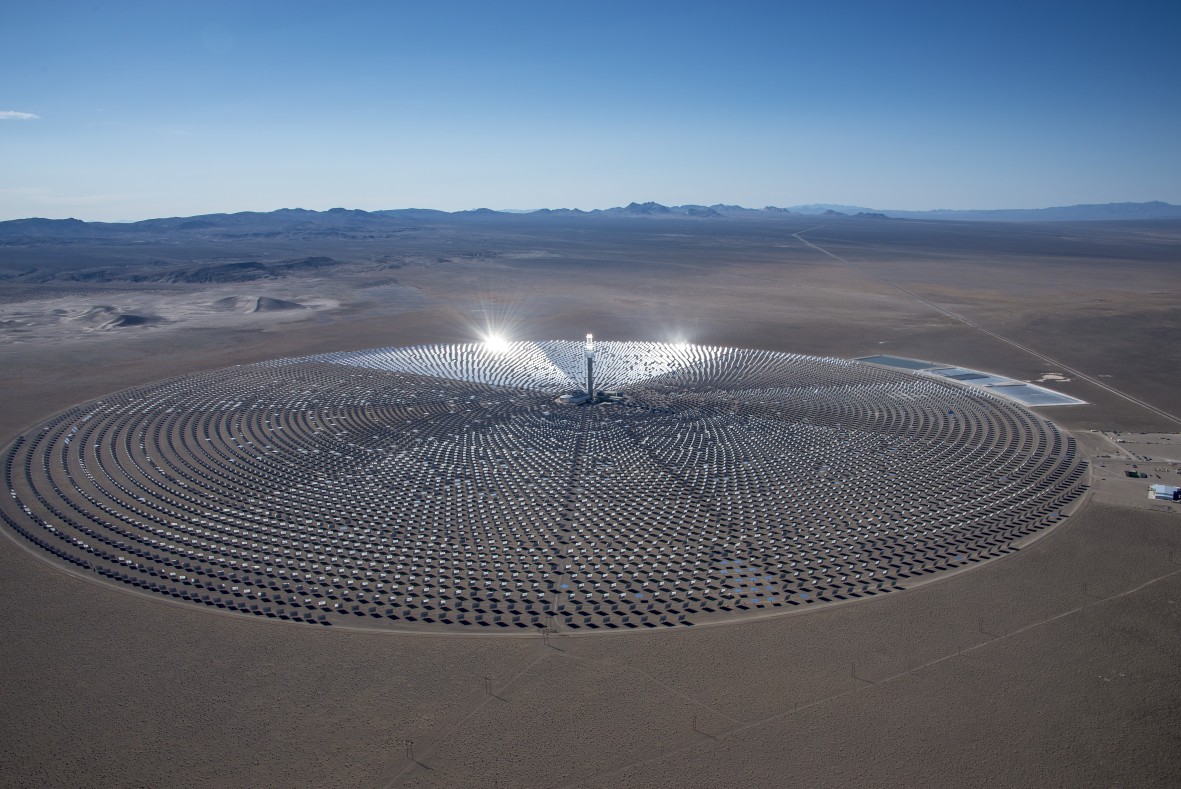

SolarReserve’s Crescent Dunes Solar Energy Plant in Nevada is the first utility-scale facility in the world to use advanced molten salt receiver technology, which was developed with funding from the SunShot Initiative. The 110 megawatt power plant incorporates storage to power 75,000 homes, day or night. Photo Courtesy of SolarReserve.

SolarReserve’s Crescent Dunes Solar Energy Plant in Nevada is the first utility-scale facility in the world to use advanced molten salt receiver technology, which was developed with funding from the SunShot Initiative. The 110 megawatt power plant incorporates storage to power 75,000 homes, day or night. Photo Courtesy of SolarReserve.

By using molten salt as both the heat transfer fluid and the thermal energy storage medium, CSP plants utilizing this technology provide efficient and cost effective solar storage. Photo courtesy | SolarReserve.

By using molten salt as both the heat transfer fluid and the thermal energy storage medium, CSP plants utilizing this technology provide efficient and cost effective solar storage. Photo courtesy | SolarReserve.

The project created 4,300 direct, indirect, and induced jobs with over 1,000 workers on-site during peak construction. Photo courtesy | SolarReserve.

The project created 4,300 direct, indirect, and induced jobs with over 1,000 workers on-site during peak construction. Photo courtesy | SolarReserve.

Within the receiver, molten salt flows through pipes that form the external walls, absorbing the heat from the concentrated sunlight. Photo courtesy | SolarReserve.

Within the receiver, molten salt flows through pipes that form the external walls, absorbing the heat from the concentrated sunlight. Photo courtesy | SolarReserve.

The plant utilizes dry cooling technology in a hybrid design to minimize water use at levels well below conventional power projects. Photo courtesy | SolarReserve.

The plant utilizes dry cooling technology in a hybrid design to minimize water use at levels well below conventional power projects. Photo courtesy | SolarReserve.

The same visionary scientists responsible for pioneering space exploration are also behind a national effort to commercialize concentrating solar power (CSP) plants with integral energy storage. After years of research, testing, and validating the technology, in late 2015 scientists working on the Crescent Dunes Solar Energy Project (Crescent Dunes)—a Nevada-based CSP plant—successfully reached commercial operation.

The journey to commercialization began nearly three decades ago.

Back in the 1990s, a group of scientists at Pratt & Whitney Rocketdyne worked with the U.S. Department of Energy (DOE) to develop breakthrough technology to collect the sun’s thermal energy and then store it in molten salt. From 1994 to 1999, Rocketdyne and DOE’s Solar Energy Technologies Office (SETO) built and studied a pilot project to validate technology—creating the world’s first molten salt receiver at Solar Two, a 10-megawatt (MW) test facility in the Mojave Desert.

One challenge remained: how to cost-effectively scale up and commercialize the emerging technology at the utility-scale.

With seed capital from investment firm U.S. Renewables Group and in partnership with Rocketdyne’s parent company United Technologies Corporation, the company SolarReserve formed in 2008 to commercialize the technology. From early 2008 through 2011, SolarReserve worked closely with Rocketdyne to design a commercial-scale molten salt receiver assembly and an advanced heliostat control system that significantly reduced costs and had 10 times more capacity than the Solar Two pilot project.

In 2011, SolarReserve took the technology developed with SETO to the next level with financing from the Energy Department’s Loan Programs Office and began building Crescent Dunes. Located in Tonopah, Nevada, Crescent Dunes features a solar receiver that sits atop a tower and absorbs sunlight from over 10,000 mirrors. These mirrors follow the sun over the course of a day and magnify the sun’s power 1,200 times, heating molten salt to high temperatures. This molten salt circulates through the tower and is then used to heat a steam cycle that generates electricity. The plant also features an automated system that controls the flow of molten salt to the receiver.

With the push of a button, plant operators manage dozens of valves and pumps to start, stop, and adjust the collection of solar energy and control electricity production. Despite changing weather patterns, the molten salt heats more than 60 million pounds of salt each day to reach a consistent 1,050 degrees Fahrenheit. The salt continually circulates in a loop, enabling its reuse by storing it in tanks for use at a later time.

In November 2015, Crescent Dunes successfully reached commercial operation and every year delivers 110 MW of electricity, plus 1.1 gigawatt-hours of storage under a 25-year power purchase agreement with NV Energy, the largest utility in Nevada.

Crescent Dunes was specifically designed to meet NV Energy’s peak energy demand periods, extending into the evening hours until about midnight. To handle these demands when the sun isn’t shining, the plant’s energy storage integration delivers solar energy captured during the day to the grid during the late afternoon and evening when the demand for power is at its highest. The storage capacity of the plant is staggering. Every day, enough energy is stored at Crescent Dunes to match all of the utility-scale batteries in global operation—combined—at a fraction of the cost and with no degradation or replacement issues.

Since the molten salt absorbs 90% of the solar energy it receives and is used as both a heat transfer fluid and a storage medium, the plant is highly efficient. Crescent Dunes also eliminates reliance on fossil fuels as a backup energy source, enabling solar to operate as baseload generation and reliably deliver peak-period electricity to more than 75,000 homes in Nevada.

The first-of-its-kind plant has already paved the way for future cost declines and enabled the company to bid for new CSP projects at even lower electricity prices. A milestone for the country’s energy future, the Crescent Dunes establishes the United States as a global leader in CSP technology. Crescent Dunes serves  as a blueprint for solar projects in Latin America, Africa, the Middle East, and Asia, helping countries around the world use clean, affordable electricity.

The SunShot Initiative is managed by the Solar Energy Technologies Office, the primary office within the U.S. Department of Energy that funds innovations in solar power. Learn more about the SunShot Initiative’s concentrating solar power program.
