What is a Neutrino Horn?

August 29, 2016

You are here

How to Make a Neutrino Beam

Neutrinos are elusive particles that are difficult to study, yet they may help explain some of the biggest mysteries of our universe. Using accelerators to make neutrino beams, scientists are unveiling the neutrinos' secrets. | Video courtesy of Symmetry Magazine.

NEUTRINOS ARE TRICKY

Although trillions of these harmless, neutral particles pass through us every second, they interact so rarely with matter that, to study them, scientists send a beam of neutrinos to giant detectors. And to be sure they have enough of them, scientists have to start with a very concentrated beam of neutrinos.

To concentrate the beam, an experiment needs a special device called a neutrino horn.

An experiment’s neutrino beam is born from a shower of short-lived particles, created when protons traveling close to the speed of light slam into a target. But that shower doesn’t form a tidy beam itself; that’s where the neutrino horn comes in.

Once the accelerated protons smash into the target to create pions and kaons -- the short-lived charged particles that decay into neutrinos -- the horn has to catch and focus them by using a magnetic field. The pions and kaons have to be focused immediately, before they decay into neutrinos because, unlike the pions and kaons, neutrinos don’t interact with magnetic fields. That means we can’t focus them directly.

Without the horn, an experiment would lose 95 percent of the neutrinos in its beam. Scientists need to maximize the number of neutrinos in the beam because neutrinos interact so rarely with matter. The more you have, the more opportunities you have to study them.

“You have to have tremendous numbers of neutrinos,” said Jim Hylen, a beam physicist at Fermilab. “You’re always fighting for more and more.”

Also known as magnetic horns, neutrino horns were invented at CERN by the Nobel Prize-winning physicist Simon van der Meer in 1961. A few different labs used neutrino horns over the following years, and Fermilab and J-PARC in Japan are the only major laboratories now hosting experiments with neutrino horns. Fermilab is one of the few places in the world that makes neutrino horns.

HOW THEY WORK

The proton beam first strikes the target that sits inside or just upstream of the horn. The powerful proton beam would punch through the aluminum horn if it hit it, but the target, which is made of graphite or beryllium segments, is built to withstand the beam’s full power. When the target is struck by the beam, its temperature jumps by more than 700 degrees Fahrenheit, making the process of keeping the target-horn system cool a challenge involving a water-cooling system and a wind stream.

Once the beam hits the target, the neutrino horn directs resulting particles that come out at wide angles back toward the detector. To do this, it uses magnetic fields, which are created by pulsing a powerful electrical current -- about 200,000 amps -- along the horn’s surfaces.

“It’s essentially a big magnet that acts as a lens for the particles,” said physicist Bob Zwaska.

The horns come in slightly different shapes, but they generally look on the outside like a metal cylinder sprouting a complicated network of pipes and other supporting equipment. On the inside, an inner conductor leaves a hollow tunnel for the beam to travel through.

NUMI horn 2.jpg

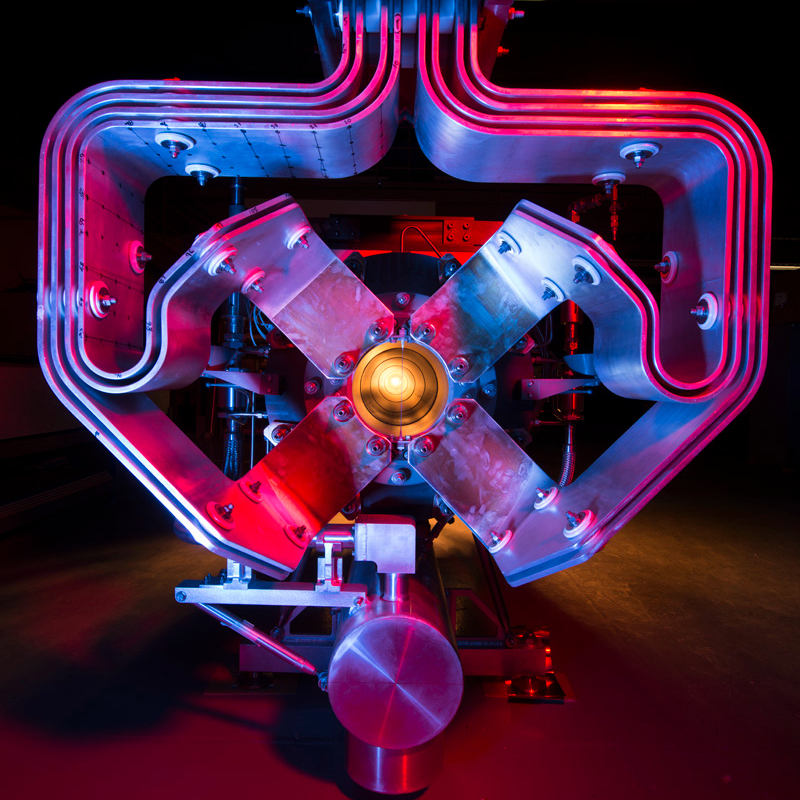

This is a neutrino horn at Fermilab called the NuMI horn. | Photo by Reidar Hahn, Fermilab.

Because the current flows in one direction on the inner conductor and the opposite direction on the outer conductor, a magnetic field forms between them. A particle traveling along the center of the beamline will zip through that tunnel, escaping the magnetic field between the conductors and staying true to its course. Any errant particles that angle off into the field between the conductors are kicked back in toward the center.

Making and running a neutrino horn can be tricky. A horn has to be engineered carefully to keep the current flowing evenly. And the inner conductor has to be as slim as possible to avoid blocking particles. But despite its delicacy, a horn has to handle extreme heat and pressure from the current that threaten to tear it apart.

“It’s like hitting it with a hammer 10 million times a year,” Hylen said.

Because of the various pressures acting on the horn, its design requires extreme attention to detail, down to the specific shape of the washers used. And as Fermilab conducts neutrino experiments at increasing beam powers, the need for the horn engineering to be exact only grows.

Neutrinos are difficult to study, but physicists are betting neutrinos can’t keep their secrets forever. If this research pays off, it may unlock some of the biggest mysteries of the universe.

Editor’s Note: This post was originally published by Fermilab. The video at the top of the page was produced by Symmetry, an online magazine about particle physics jointly published by Fermilab and SLAC, two of the Department of Energy’s 17 National Laboratories.
